TheraLight FIT

RED LIGHT THERAPY BED: TheraLight FIT

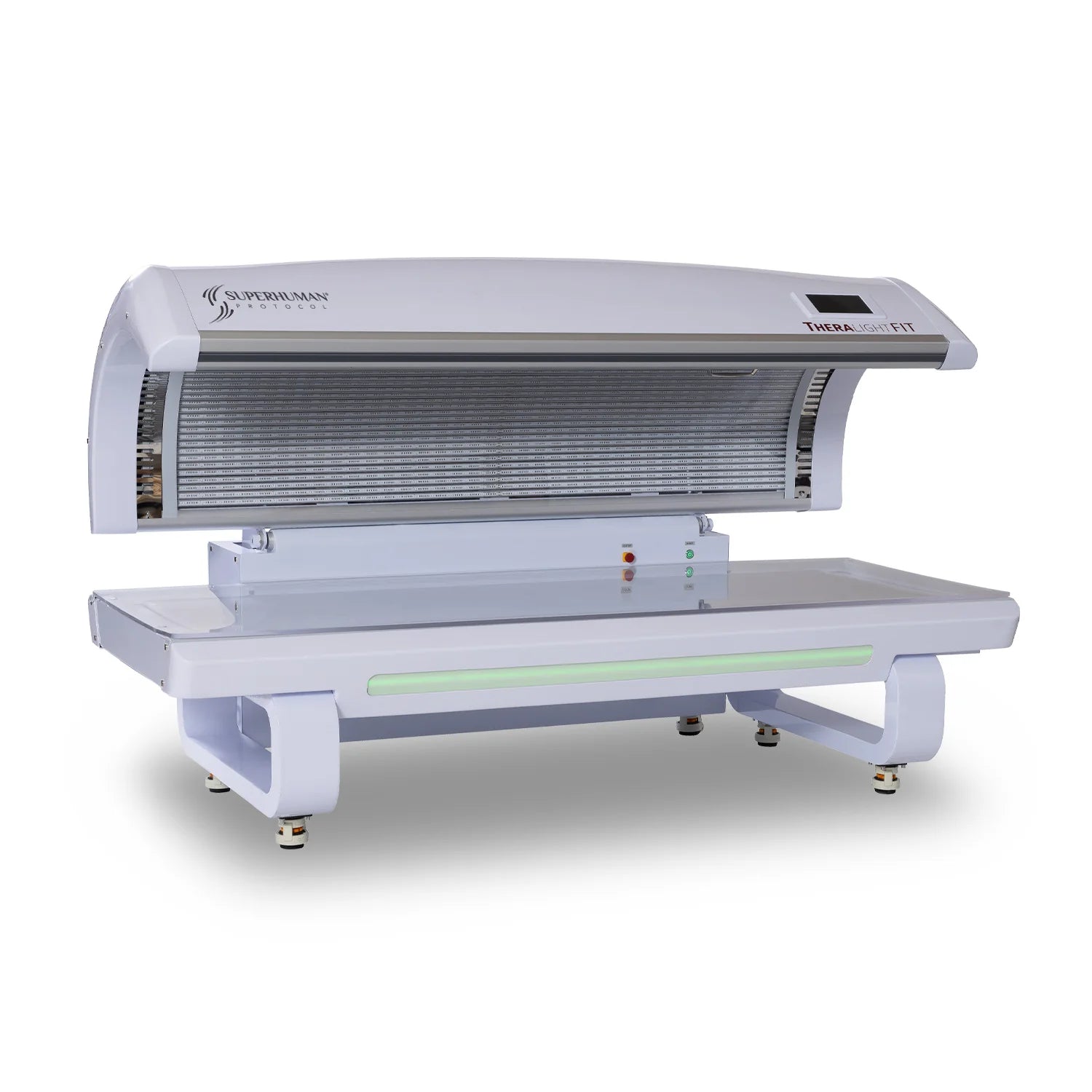

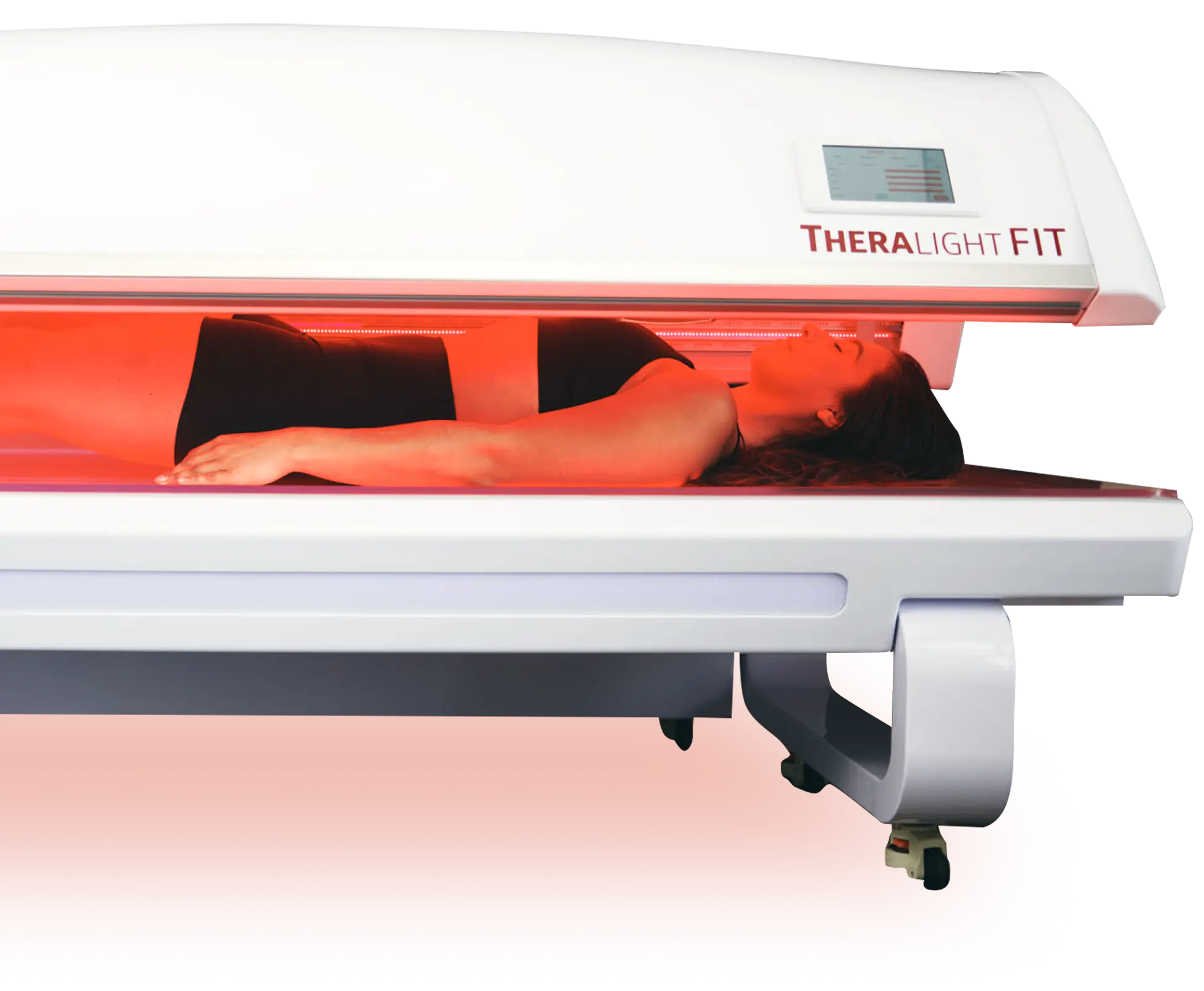

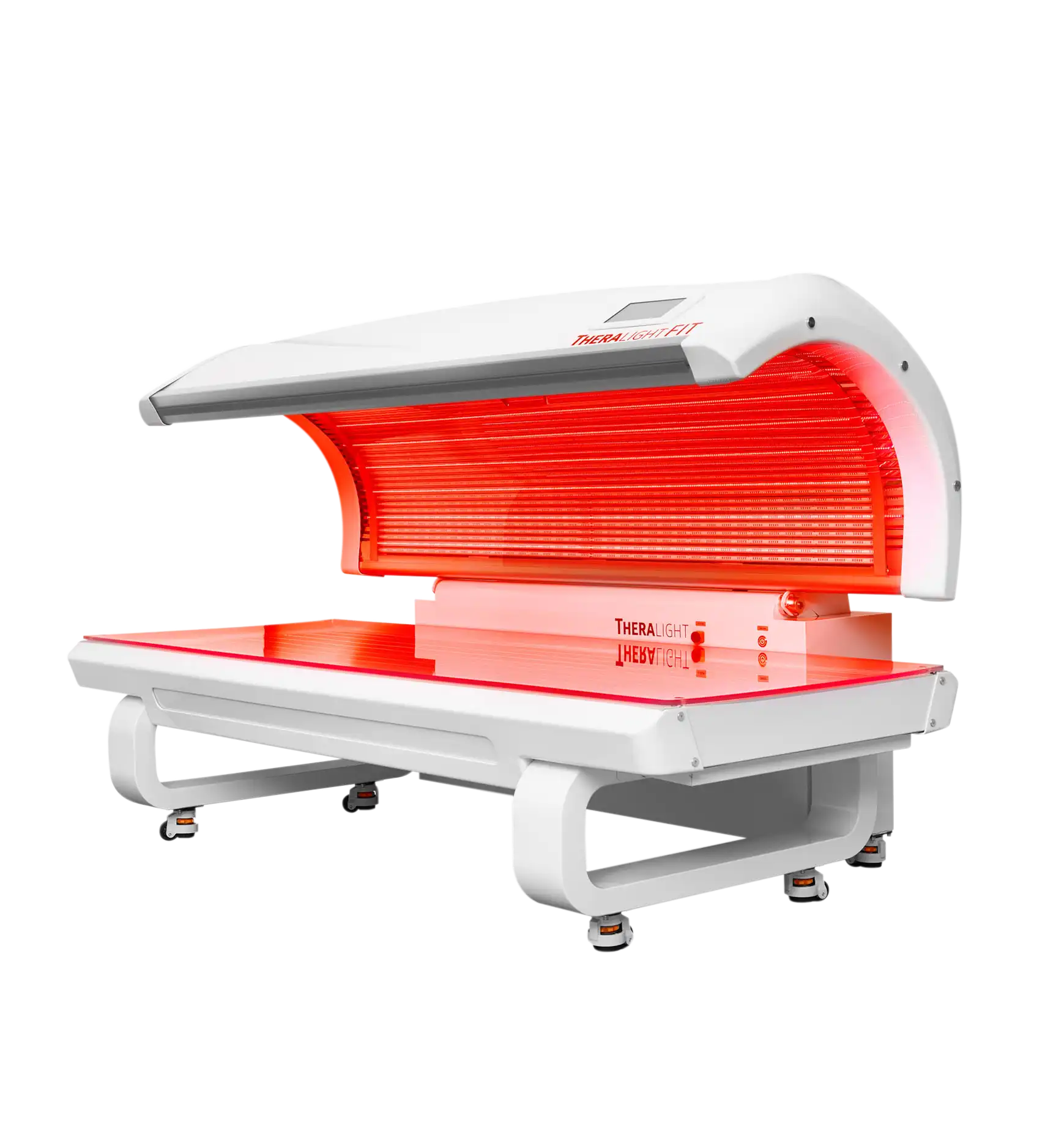

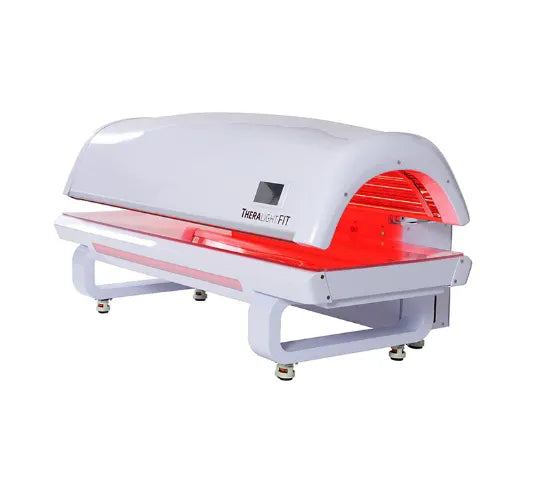

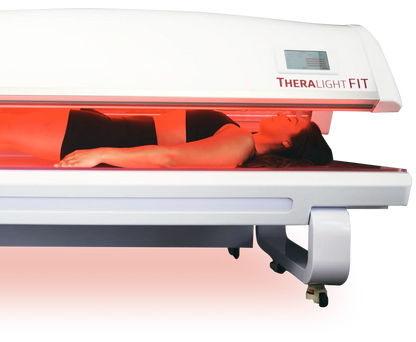

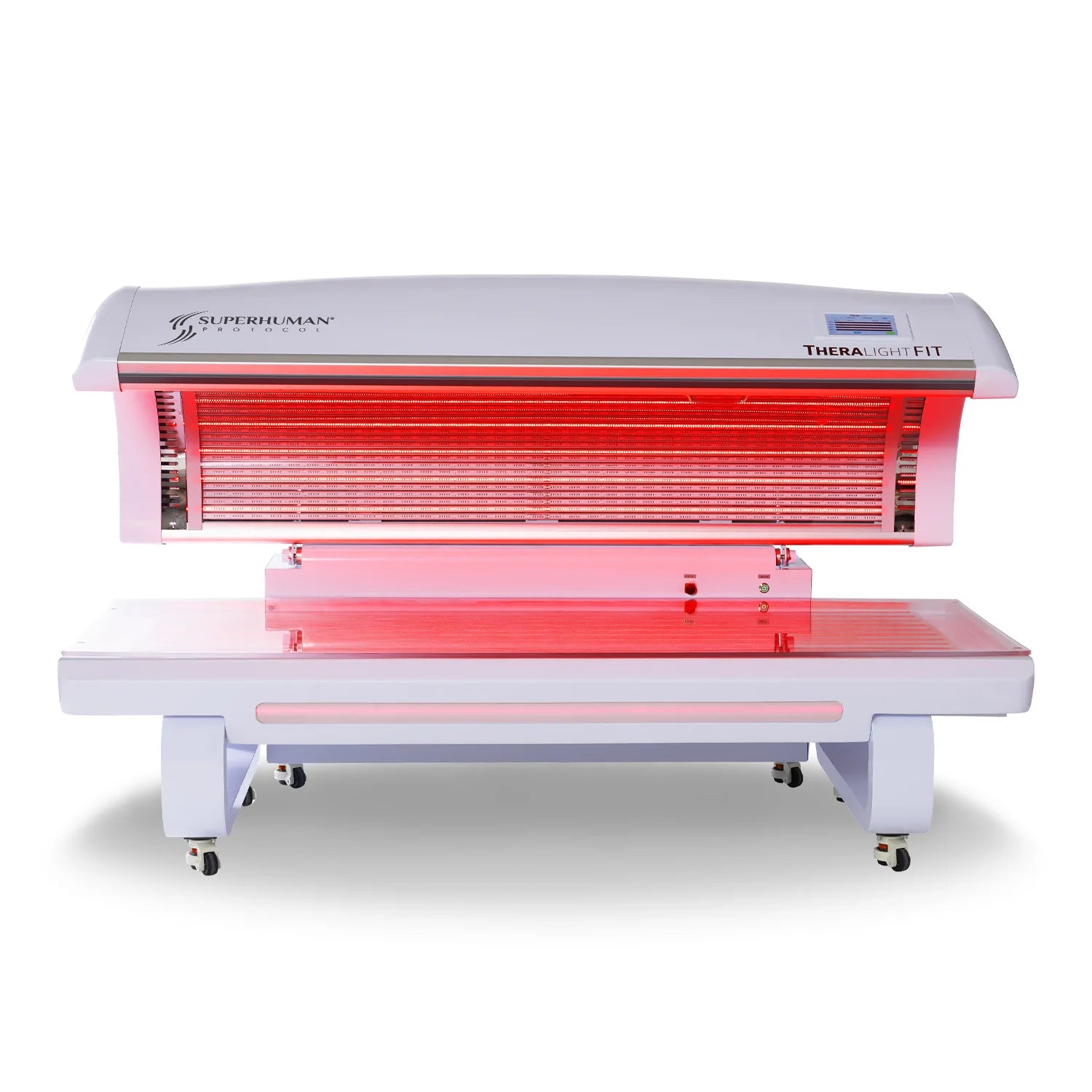

The TheraLight FIT is a compact, professional-grade full-body red light therapy bed built to bring clinical-level photobiomodulation into any home or clinical environment — without the power requirements, footprint, or operational complexity of the full 360. The design is clean and purposeful — a horizontal light therapy chamber with a smooth modern shell, flat acrylic base for easy entry and exit, highly reflective interior panels for maximum light delivery, and bottom wheels for repositioning. At 6'8" long and operating on standard 110V power, the FIT is the most accessible entry point into the TheraLight system — same medical device credentials, same four clinically validated wavelengths, same FDA registration and ISO compliance — in a form factor that fits where the 360 cannot. Crucially, the FIT was updated in 2025 with a new advanced touchscreen LCD, a flat acrylic base replacing the previous curved design, and 110V power compatibility — making it the most practical and livable TheraLight system available.

Light Technology:

• LED Type: GaAlAs Diode LED — medical-grade
• LED Count: Full-body coverage array
• LED Lifespan Rating: 100,000 hours
• Wavelengths: Four clinically validated wavelengths — 633nm, 810nm, 850nm, and 940nm — each independently controlled for precision protocol customization
• Irradiance: 100 mW/cm²
• Total Dose in 10 Minutes: 60 J/cm²
• Homogeneous Light Distribution: Yes — uniform coverage across full body surface
• Highly Reflective Interior Panels: Yes — engineered to maximize therapeutic light delivery

Operation Modes:

• Continuous Wave
• Variable
• Pulsed — 0 to 5,000 Hz adjustable in 1 Hz increments
• Rapid treatment capability — full therapeutic dose achievable in 10 minutes

Recommended Treatment:

• Session Duration: 10–20 minutes
• Full-Body Coverage: Top and bottom simultaneous exposure — head to toe

Controls & Smart System:

• Primary Control: 7" built-in touchscreen LCD — integrated directly into the unit
• Secondary Control: 10" wireless full-color Bluetooth tablet — full-color user-friendly interface
• Independent Wavelength Control: Each of the four wavelengths controlled independently
• Remote Operation: Controllable from a separate room via Bluetooth
• Protocol Storage: Ability to set, save, and recall personalized user protocols
• Dual Control Advantage: Both touchscreen and tablet operable simultaneously — clinic or front desk management without entering the treatment space

Physical Specifications:

• Dimensions: 6'8" L × 4' W × 3'4" H (206 cm × 114 cm × 104.5 cm)
• Treatment Bed Length: 6'5" — accommodates most users comfortably
• Weight: 400 lbs (181 kg)
• Weight Capacity: 300 lbs
• Mobility: Bottom wheels for repositioning
• Base: Flat acrylic base — stable, supportive, easy entry and exit; upgraded from previous curved-base design

Electrical:

• Power Supply: 110V, 20A max, 60Hz — standard household outlet compatible; no dedicated 240V circuit required

Comfort & Environment:

• Cooling: Active air cooling system — maintains stable internal temperature throughout session
• Entry/Exit: Flat acrylic base specifically engineered for easier entry and exit compared to curved-base competitors
• Footprint: More compact than the TheraLight 360 — designed to fit into standard room configurations

Regulatory & Safety Compliance:

• FDA Registered
• Health Canada Approved
• ISO 13485 Compliant
• IEC Safety Certified
• OSHA Compliant
• RoHS 1 Compliant
• Space Foundation Certified technology lineage — same TheraLight medical device pedigree as the 360

Warranty:

• System Warranty: 3 years
• LED Lifespan: 100,000 hours rated

Delivery & Installation:

• TheraLight personally delivers and installs every unit on-site — technicians travel throughout the United States and internationally for every installation
• On-site staff training included with every installation — clinical protocol guidance and operational training provided by TheraLight's own experts
• Ships within 24 hours of payment confirmation for US orders; 5–7 day transit time domestic

Therapeutic Applications: The TheraLight FIT is clinically designed for support across: inflammation and pain reduction, muscle recovery and tissue repair, skin rejuvenation and collagen production, circulation and oxygenation, mental clarity and mood, sleep quality and energy balance, and general cellular health and longevity.

FIT vs. 360 — Key Differences at a Glance:

• Power: FIT requires 110V standard outlet; 360 requires 240V 30A dedicated circuit
• Irradiance: FIT delivers 100 mW/cm²; 360 delivers 165 mW/cm²
• Dose in 10 min: FIT delivers 60 J/cm²; 360 delivers 99 J/cm²
• Dimensions: FIT is more compact at 6'8" L; 360 is 7'3" L
• Weight Capacity: FIT supports 300 lbs; 360 supports 500 lbs
• Display: FIT adds a 7" integrated touchscreen in addition to the 10" tablet
• Warranty: FIT carries a 3-year system warranty; 360 carries a 5-year system warranty with lifetime LED coverage
• PEMF: Available on 360; not listed as standard on FIT
• Best For: FIT is ideal for home environments, standard electrical access, and users prioritizing footprint and accessibility; 360 is ideal for maximum therapeutic dose, higher weight capacity, and dedicated wellness spaces

Why Meridian Immersion System: The TheraLight FIT delivers the same four clinically validated wavelengths, the same FDA registration, the same ISO 13485 compliance, the same Space Foundation certified technology lineage, and the same TheraLight on-site installation and training experience as the 360 — on a standard 110V outlet, in a more compact footprint, at a more accessible price point. For the client whose space, electrical infrastructure, or budget places the 360 out of reach, the FIT is not a lesser product. It is the same science, the same credentials, and the same brand — engineered to fit where the 360 cannot.
