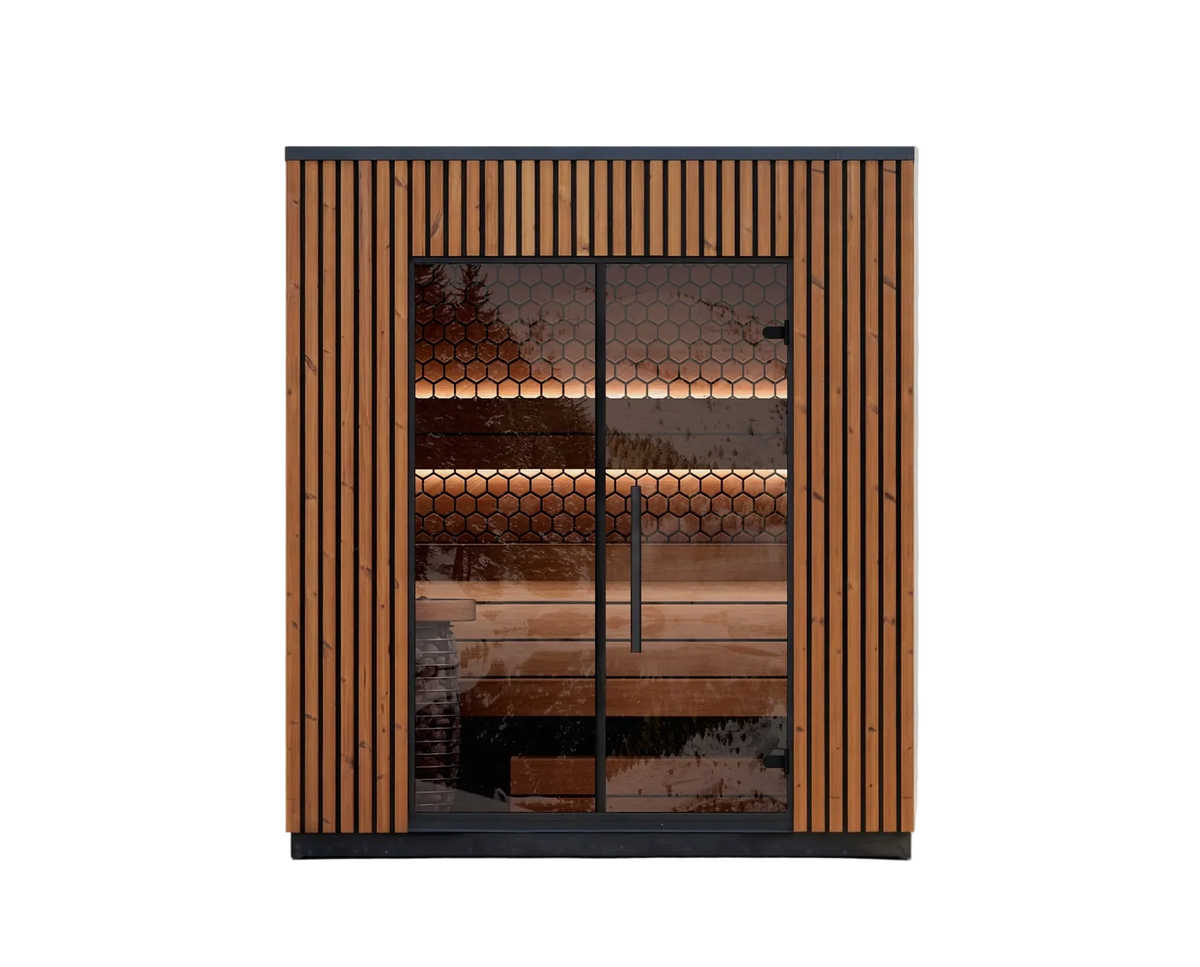

The Leil VIVA 210 is a three-person outdoor traditional sauna designed to provide more shoulder room and the option to recline while maintaining a relatively compact footprint. It is constructed from 40 mm ThermoWood® elements and includes thermo-alder seating, a bronze tempered-glass door, an EPDM-covered roof, and three-point gravity ventilation.

The standard package includes the sauna cabin only. Heater, controls, sauna stones, lighting, and accessories are selected separately.

Manufacturer

• Manufacturer: Leil Saunas OÜ
• Manufacturing location: Võnnu, Kastre Municipality, Tartu County, Estonia
• Model: VIVA 210
• Collection: VIVA
• Product category: Outdoor traditional sauna
• Stated capacity: Three people
• Floor area: Approximately 3.8 m²
• Construction type: Modular outdoor sauna kit
• Intended use: Residential

What Is Included

Standard Cabin Package

• Forty-millimetre ThermoWood® wall elements
• Forty-millimetre ThermoWood® floor
• Forty-millimetre ThermoWood® ceiling
• Thermo-alder upper bench
• Thermo-alder lower bench
• Thermo-alder backrest
• Interior step bench
• Bronze-tinted tempered-glass door
• Premium door handle
• Black metal door hardware
• Vertical architectural front detailing
• EPDM roof covering
• Three ventilation openings
• Adjustable upper drying vent
• Integrated floor-drainage provisions
• Structural fasteners and assembly hardware
• Installation documentation

Selected Separately

• Sauna heater
• Heater control
• Sauna stones
• Heater safety railing or guard
• Temperature sensor
• Door sensor where required
• Electrical installation materials
• LED lighting
• Decorative hexagon rear wall
• Sauna accessories
• Automatic water-dosing equipment

The final estimate and invoice must identify every heater, control, stone, lighting, safety, and accessory component included in the client’s order.

Exterior Dimensions

• Width: 83.3 inches / 2115 mm
• Depth: 70.9 inches / 1800 mm
• Height: 92.1 inches / 2340 mm

Interior Dimensions

• Width: 79.9 inches / 2030 mm
• Depth: 62.2 inches / 1580 mm
• Height: 82.7 inches / 2100 mm

Additional Measurements

• Sauna-room volume: Approximately 237 ft³
• Floor area: Approximately 3.8 m²
• Stated capacity: Three people
• Sauna weight: Approximately 1,433–1,450 pounds / 650 kg

Final foundation dimensions, roof overhangs, door positioning, heater clearances, and production measurements must be confirmed from the approved drawings before site preparation.

• Full-width upper bench
• Lower bench
• Separate step bench
• Integrated backrest
• Two-level seating
• Approximately three-person capacity
• Additional shoulder room compared with smaller VIVA models
• Sufficient upper-bench length for reclining
• Clear heater area at the side of the seating
• Bench elevation designed for traditional sauna heat

The number of occupants who can recline or sit comfortably depends on body size and preferred personal space.

Exterior and Structure

• Thermally modified Nordic pine
• Forty-millimetre wall elements
• Forty-millimetre solid floor
• Forty-millimetre ceiling
• Vertical timber detailing across the front
• EPDM roof membrane
• Outdoor timber construction

Interior

• ThermoWood® wall and ceiling surfaces
• Thermo-alder upper and lower benches
• Thermo-alder backrest
• ThermoWood® floor
• Timber step bench
• Wood-lined traditional sauna room

ThermoWood® Characteristics

ThermoWood® is modified with controlled heat and steam without adding chemical wood preservatives during the thermal-modification process.

Relevant characteristics include:

• Reduced equilibrium moisture content
• Reduced moisture absorption
• Improved dimensional stability
• Reduced swelling and shrinking
• Reduced warping and twisting
• Reduced resin release
• Consistent warm coloration
• Suitability for changing heat and humidity when maintained correctly

Thermally modified wood remains a natural material and still requires annual inspection and treatment.

Heating Options

The current Muskoka configuration offers two electric-heater families:

• HUUM DROP 7.5 kW
• Saunum Air 7

Neither heater is included in the base cabin price. The selected heater must be listed on the approved estimate with its controller, stones, sensors, safety accessories, and electrical requirements.

Leil also identifies the VIVA series as compatible with appropriately designed wood-fired heating, although a wood-fired package is not presently shown among the linked Muskoka product options.

Door and Glazing

• Door material: Tempered safety glass
• Glass color: Bronze tint
• Door hardware: Black metal
• Handle: Premium sauna-door handle
• Timber construction above the glazing
• Door orientation: Confirm from final production drawings

The additional ThermoWood® above the glazing helps limit the loss of accumulated warm air and steam when the door is opened.

Roof Construction

• Forty-millimetre ThermoWood® ceiling
• Exterior EPDM roof covering
• Designed for outdoor moisture protection
• EPDM edges, seams, and penetrations must be installed correctly
• Roof must shed water away from the cabin
• Local snow, wind, rainfall, and anchoring requirements must be evaluated

The supplied roof construction does not eliminate the need for locally required structural or building-code review.

Heater

• Manufacturer: HUUM
• Model: DROP 7
• Installation: Wall-mounted
• Rated output at 240V: 7.5 kW
• Rated room range at 240V: Approximately 248–389 ft³
• Cabin volume before glass adjustment: Approximately 237 ft³
• Voltage: 240 VAC
• Phase: Single-phase
• Published current: Approximately 31.25 amps
• Published circuit breaker: 40 amps
• Published minimum power conductor: 8 AWG
• Stone capacity: Approximately 122 pounds / 55 kg
• Heater dimensions: Approximately 15.35 W × 13.2 D × 23.3 H inches
• Heater weight without stones: Approximately 26.5 pounds
• Heater finish: Stainless steel
• Heater control: Required separately

The glazed area must be included in the heater-sizing calculation. Final suitability must be confirmed against current HUUM sizing requirements and site conditions.

HUUM Controls

Available control selections include:

• UKU Local
• UKU Wi-Fi

Available control finishes vary by control type and may include:

• Black
• Grey
• Blue
• White
• Sand
• Wood
• Glass
• Mirror
• Gold

Not every finish is available for both local and Wi-Fi controllers.

HUUM Accessories

Available separately:

• Four-box sauna-stone package
• Safety railing
• Drip tray
• Additional heater accessories approved by HUUM

• Manufacturer: Saunum
• Model: Air 7
• Heater style offered by Muskoka: Solid steel
• Heater type: Floor-standing electric sauna heater with climate equalization
• Rated output: Approximately 6.9 kW
• Rated room range: Approximately 177–318 ft³
• Voltage: 240 VAC
• Phase: Single-phase
• Published current: Approximately 28.75 amps
• Published circuit breaker: 40 amps
• Heater dimensions: Approximately 18.3 inches wide × 12.4 inches deep
• Adjustable total height: Approximately 72–94.5 inches
• Minimum ceiling height: Approximately 73 inches
• Stone capacity: Confirm from the exact current package
• Climate device: Integrated
• Fan operation: Adjustable
• Control: Required separately

Climate Equalization

The integrated climate device draws hotter air from the upper cabin, blends it with cooler air from below, and redistributes the mixed air into the occupied area.

This is designed to:

• Reduce vertical temperature stratification
• Improve temperature consistency between the upper and lower body
• Move air through the cabin
• Allow adjustment of climate intensity
• Support post-use drying circulation
• Preserve traditional water-over-stones steam

Saunum AirIQ Wi-Fi Control

Available separately:

• Digital temperature control
• Climate-device fan control
• Wi-Fi connectivity
• Mobile-app access
• Weekly scheduling
• Preset sauna configurations
• Temperature sensor
• Door-sensor integration
• Temperature range of approximately 104–194°F / 40–90°C
• Safety and screen locks
• Overheat protection

Saunum Accessories

Available separately:

• Four-box Saunum stone package
• Saunum AirIQ Wi-Fi control
• Air deflector
• Auto Leil automatic water-dosing accessory
• Aroma-oil set
• Manufacturer-approved heater safety accessories

The heater, controller, and stone package must all be included for a complete operational installation.

If a wood-fired heater is selected outside the current online configuration, the project may require:

• Properly sized wood-burning sauna stove
• Manufacturer-approved stones
• Complete chimney and flue system
• Roof-penetration components
• Heat shields
• Noncombustible floor protection
• Noncombustible wall protection
• Spark arrestor where required
• Combustion-air provisions
• Required clearances to combustible materials
• Local building and fire approvals

The cabin, stove, and chimney must be reviewed as one coordinated installation.

• Traditional water-over-stones steam
• Stones selected according to the exact heater
• HUUM DROP 7.5 stone capacity: Approximately 122 pounds
• Saunum stone requirement: Confirm from the current Air 7 package and manual
• Stones must be loaded according to heater instructions
• Stones must not be packed tightly around heating elements
• Only suitable sauna water should be applied
• Cracked or deteriorated stones should be replaced
• Loose stone fragments should be removed from the heater

Performance depends on the selected heater.

HUUM Configuration

• Traditional high-temperature sauna
• Large exposed stone mass
• Water-over-stones steam
• Local or Wi-Fi control
• Warm-up performance depends on stone loading and site conditions

Saunum Configuration

• Traditional high-temperature sauna
• Climate-equalizing air circulation
• Adjustable fan operation
• Water-over-stones steam
• AirIQ temperature selection up to approximately 194°F

For either configuration, warm-up time depends on outdoor temperature, wind, glass area, ventilation, heater output, stone quantity, and door use.

HUUM DROP 7.5

• 240 VAC
• Single-phase
• Approximately 31.25-amp heater load
• Published 40-amp circuit breaker
• Published minimum 8 AWG power conductor
• Dedicated hardwired circuit
• Separate UKU control system required

Saunum Air 7

• 240 VAC
• Single-phase
• Approximately 28.75-amp heater load
• Published 40-amp circuit breaker
• AirIQ control and climate-device requirements
• Neutral and grounding conductors where specified
• Dedicated hardwired circuit

Lighting

• Separate electrical provisions may be required
• Transformer must be installed in a suitable accessible location
• Outdoor wiring and enclosures must be appropriate for the site

All permanent electrical work must be completed by a licensed electrician. The current heater and controller manuals, rather than this summary, determine final breaker, conductor, neutral, disconnect, protection, and wiring requirements.

HUUM UKU Wi-Fi Option

• Wi-Fi connectivity
• HUUM mobile-app control
• Remote starting
• Scheduling
• Temperature adjustment
• Session monitoring
• Door-sensor safety requirements

Saunum AirIQ Wi-Fi Option

• Wi-Fi connectivity
• Saunum mobile-app control
• Weekly scheduling
• Preset temperature and climate settings
• Climate-device fan adjustment
• Remote starting
• Door-sensor integration
• Overheat protection

No smart control is included with the base cabin.

Standard Cabin

• No lighting confirmed in the base cabin price

Optional LED Lighting Set 3

The Muskoka listing offers an optional LED package that may illuminate:

• Beneath the bench
• Above the backrest
• Above and below the backrest

The final package should identify:

• Exact LED-strip locations
• Light color
• Dimming capability
• Transformer
• Control
• Cabling
• Installation enclosure

Chromotherapy is not included unless a separate color-lighting package is specifically listed on the approved estimate.

Hexagon Rear Wall

• Optional decorative back-wall treatment
• Geometric hexagonal pattern
• Coordinated wood construction
• Selected separately
• Not included in the standard cabin price

Ventilation

The VIVA 210 uses three-point gravity ventilation:

• Fresh-air intake beside the heater
• Exhaust opening beneath the benches
• Adjustable drying vent in the upper corner

The arrangement supports:

• Fresh air near the heat source
• Air movement through the occupied space
• More consistent heat distribution
• Moisture release after use
• Interior drying between sessions

Final vent placement must also comply with the selected heater manufacturer’s instructions.

Leil saunas include integrated floor-drainage provisions and a slightly inclined floor intended to direct water toward the drain.

The site must provide:

• Suitable drain connection or discharge point
• Positive drainage away from the foundation
• Freeze-conscious piping where applicable
• Protection against backflow
• Access for maintenance
• Compliance with local plumbing and environmental requirements

Site and Foundation Requirements

The client must provide:

• Stable, level foundation
• Non-settling structural base
• Foundation sized to approved production drawings
• Structural capacity for the cabin, heater, stones, occupants, snow, and wind loads
• Positive site drainage
• Required anchoring
• Safe pathway to the sauna
• Electrical or chimney provisions
• Installation and service clearances
• Required permits and approvals

Leil identifies driven piles and concrete foundations as suitable approaches when properly designed for the site.

Product-Specific Shipping Information

• Published shipping dimensions: Approximately 91 × 48 × 48 inches
• Published shipping weight: Approximately 1,500 pounds
• Freight destination: Local freight depot
• Standard delivery does not include transportation to the residence
• Final-mile service may be available from some depots at additional cost
• Contiguous-US flat-rate terms may not apply to Hawaii, Alaska, islands, or remote destinations

Client Responsibilities

• Respond to the freight carrier promptly
• Schedule depot pickup
• Arrange a properly rated trailer and towing vehicle
• Confirm payload and dimensional capacity
• Arrange loading and unloading equipment
• Transport the crate from the depot
• Inspect the shipment before departure
• Photograph visible damage
• Record damage on the bill of lading
• Notify the seller immediately
• Store components in a dry, protected location

• Modular outdoor cabin kit
• Self-assembly permitted
• Professional installation recommended by Leil
• Multiple installers required
• Foundation must be completed first
• Roof membrane must be installed weather-tight
• Glass requires careful multi-person handling
• Cabin must be level before final door adjustment
• Drainage must be coordinated during installation
• Heater and controls follow separate manuals
• Licensed electrician required for electric heat
• Qualified chimney professional required for wood-fired heat
• Installation must comply with local codes and permit requirements
