• Product type: Indoor traditional sauna system
• Cabin model: Leil COMO 4-180
• Heater: Saunum Air 5
• Control system: Saunum AirIQ Wi‑Fi
• Recommended capacity: 4 people
• Required floor area: 2.7 m² / approximately 29.1 sq. ft.
• Interior sauna volume: Approximately 4.7 m³ / 166 cu. ft.
• Interior configuration: Face-to-face, multi-level seating
• Heating method: Electric stone heater with integrated climate-equalizing technology
• Installation format: Modular, site-assembled cabin
• Cabin manufactured in Estonia
• Saunum heating system designed and manufactured in Estonia

The Saunum Air 5 combines a traditional electric stone heater with an integrated air-mixing system that redistributes heat throughout the cabin. The system is operated through the Saunum AirIQ Wi‑Fi control.

• Exterior width: 1810 mm / 71.3 in.
• Exterior depth: 1500 mm / 59.0 in.
• Exterior height: 2080 mm / 81.9 in.
• Interior width: 1692 mm / 66.6 in.
• Interior depth: 1353 mm / 53.3 in.
• Interior height: 2000 mm / 78.7 in.
• Cabin weight: 450 kg / 990 lb., excluding heater and stones
• Required floor area: 2.7 m² / approximately 29.1 sq. ft.
• Interior volume: Approximately 4.7 m³ / 166 cu. ft.
• Exterior wall thickness: 40 mm / approximately 1.6 in.

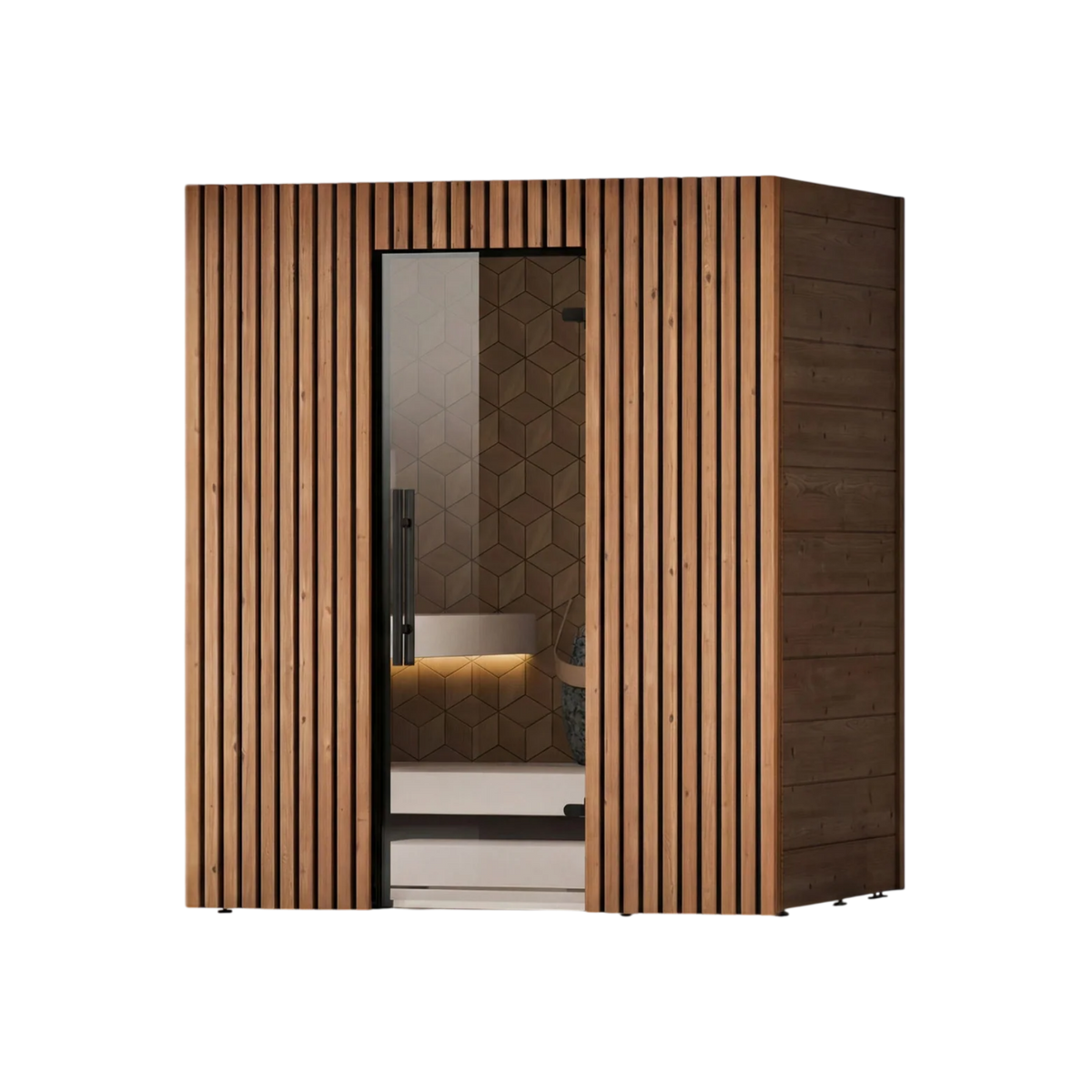

• Architectural front wall with vertical ThermoWood® slats
• Clear tempered-glass entrance door
• Premium door handle
• Black door hinges
• Reversible door-opening direction during assembly
• Adjustable feet beneath the wall structure

The prepared floor must support the cabin, Saunum heater, approximately 110–130 lb. of stones depending on heater finish, occupants, and surrounding construction.

Published dimensions vary slightly by current production version and finish. Final installation must follow the model’s supplied technical drawing and nameplate.

• Approximate heater width: 465 mm / 18.3 in.
• Approximate heater depth: 315 mm / 12.4 in.
• Adjustable height with telescopic air intake: Approximately 1816–2420 mm / 71.5–95.3 in.
• COMO 4-180 interior height: 2000 mm / 78.7 in.
• Minimum published ceiling height: Approximately 1816–1850 mm / 71.5–72.8 in.
• Heater weight without stones: Approximately 48–67 kg / 106–147 lb., depending on current model and finish
• Stone capacity:Nordic Black solid-body configuration: Approximately 50 kg / 110 lb.Stainless open-basket configuration: Approximately 60 kg / 130 lb.
• Required stone size: Approximately 50–100 mm / 2–4 in.

The telescopic hot-air intake is extended toward the ceiling during installation. The heater position, bench clearances, air outlet, protective grille, and sensor locations must be coordinated before the cabin is assembled.

• Designed for up to four seated occupants
• Two opposing upper benches support face-to-face seating
• Multi-level bench arrangement provides access to different temperature zones
• Two upper benches: Approximately 500 × 1332 mm each
• Lower bench platforms support entry, foot placement, and movement
• Integrated step bench
• Coordinating aspen backrests
• Clear interior height: 2000 mm / 78.7 in.
• Glass frontage increases visual openness
• Balanced heater placement supports heat distribution throughout both seating sides

The Saunum Air 5 air outlet must remain unobstructed. The upper edge of the air outlet must be positioned below the lower edge of the bench in accordance with Saunum’s installation instructions.

• 40 mm solid Lunawood ThermoWood® wall elements
• Thermally modified pine construction
• Resin-free ThermoWood® selected for stability under changing heat and humidity
• Reduced swelling, shrinking, twisting, and warping compared with untreated pine
• Two-piece insulated ceiling system
• Ceiling finished with 15 mm STS-profile ThermoWood®
• Natural aspen benches and backrests
• Clear tempered safety-glass door
• Precision-cut modular wall construction
• Integrated cable-routing locations
• Rubber sealing strips at designated ceiling connections
• Adjustable feet for final leveling
• Fasteners, supports, moldings, and primary cabin hardware included

Natural timber variations—including grain, color, knots, and minor movement—are expected characteristics of genuine wood.

• ThermoWood® wall elements
• Insulated ThermoWood® ceiling elements
• Vertical-slatted front façade
• Clear tempered-glass door
• Premium handle and black hinges
• Aspen upper benches
• Aspen lower benches
• Aspen backrests
• Step bench
• Bench-support system
• Adjustable feet
• Ceiling ventilation inlet
• Moldings
• Primary installation hardware
• Installation instructions

• Saunum Air 5 electric sauna heater
• Integrated three-speed climate equalizer
• Telescopic ceiling-level hot-air intake
• Adjustable lower cool-air intake
• Lower blended-air outlet
• Saunum AirIQ Wi‑Fi control panel
• Saunum AirIQ power unit
• Temperature sensor
• Door sensor
• Heater-to-power-unit cables supplied with the selected package
• Climate-device control cable
• Control-panel cable
• Protective heater grille
• Himalayan salt and aroma tray
• Required installation documentation

Sauna stones, salt spheres, mounting accessories, lighting, and safety accessories must be confirmed against the final system invoice because package contents can vary by distributor and finish.

Saunum Air 5

• Nominal heater output: Approximately 4.8–4.95 kW
• Operating voltage: 240 V AC
• Phase: Single phase
• Operating current: Approximately 20–20.6 A
• Required branch circuit: 30 A under the published North American Air 5 installation specification
• Published supply conductors: Two #10 conductors, neutral, and ground
• Permanently installed and hardwired
• Properly grounded, sauna-rated electrical supply required
• No extension cords or power strips permitted

The heater nameplate and current North American installation manual govern final breaker, conductor, grounding, disconnect, and overcurrent requirements.

Saunum AirIQ Wi‑Fi

• Power-unit supply: 240 V
• Power unit controls both the heating elements and climate-equalizing fan
• Control-panel rating: IP20
• AirIQ control-panel dimensions:Width: Approximately 85 mm / 3.3 in.Height: Approximately 105 mm / 4.1 in.Depth: Approximately 20 mm / 0.8 in.
• AirIQ power-unit dimensions:Width: Approximately 165 mm / 6.5 in.Height: Approximately 257 mm / 10.1 in.Depth: Approximately 60 mm / 2.4 in.
• Power unit installed outside the hot sauna room in an approved, accessible location
• Temperature and door-sensor wiring required
• Wi‑Fi control panel should be installed where a reliable 2.4 GHz wireless signal is available
• All concealed wiring must be installed and tested before the cabin façade is secured
• Installation must be completed by a licensed electrician

The Saunum Air 5 combines three systems in one assembly:

• Traditional electric sauna heater
• High-capacity stone basket
• Integrated climate-equalizing air system

The telescopic intake draws hotter air from the ceiling area. The system blends this air with cooler air from the lower part of the cabin and returns the mixed air beneath the bench area.

This circulation helps:

• Reduce extreme temperature stratification
• Create more consistent head-to-foot temperatures
• Distribute heat across opposing seating areas
• Produce a gentler perceived temperature without eliminating traditional heat
• Distribute steam more evenly after water is applied to the stones
• Support cabin drying after use

The climate equalizer offers three fan-speed settings through the AirIQ control.

• Published Saunum Air 5 room range for the stainless open-basket version: Approximately 106–212 cu. ft.
• Published room range for some Nordic Black solid-body versions: Approximately 106–177 cu. ft.
• COMO 4-180 interior volume: Approximately 166 cu. ft.
• The physical room volume falls within the published Air 5 range
• Effective heater sizing must also account for the glass door and any uninsulated surfaces
• Heater finish and final adjusted room volume must be confirmed before ordering
• The final Saunum-approved configuration takes precedence over nominal volume alone

• AirIQ temperature adjustment range: 104–194°F / 40–90°C
• Suitable for traditional high-temperature sauna use
• Water may be applied to approved sauna stones to create leil
• Approximately 110–130 lb. stone capacity supports sustained heat and steam production
• Heat-up time depends on ambient temperature, ventilation, heater finish, glass exposure, and electrical conditions
• Insulated ceiling elements support heat retention
• 40 mm ThermoWood® walls provide thermal mass and structural stability
• Saunum air circulation helps reduce concentrated ceiling heat and colder floor-level air
• Multiple bench levels still provide selectable temperature zones
• The AirIQ control manages target temperature, session time, and climate-device speed

The Saunum AirIQ Wi‑Fi control is included as the system’s operating interface.

Features include:

• Wi‑Fi connectivity
• Saunum AirIQ mobile-app pairing
• Remote system management
• Temperature selection from 104–194°F
• Three-speed climate-equalizer control
• Up to three customized sauna profiles
• Preset temperature, operating time, and fan-speed combinations
• Weekly session scheduling
• Day-and-time scheduling
• Fahrenheit or Celsius display
• Imperial or metric settings
• Multiple interface languages
• Sauna-ready notifications
• Heating-status notifications
• Open-door notifications
• Overheat-protection notifications
• Door-safety sensor
• Overheat protection
• Screen lock
• Child lock
• Software updates through Wi‑Fi
• Time-zone and regional settings

North American residential operating-time and remote-start limitations must remain configured according to the current Saunum manual and applicable safety requirements.

The heater and surrounding area must always be inspected and confirmed clear before activating a scheduled or remote session.

Optional lighting configurations may include:

• LED lighting beneath the benches
• LED lighting behind the upper backrests
• LED lighting behind upper and lower backrests
• White or color-adjustable illumination
• Independent lighting control
• Integration with the selected system-control arrangement where compatible

Lighting is separate from the Saunum heater and AirIQ control unless specifically included in the final system.

The Saunum climate equalizer and the cabin ventilation system perform different functions.

Saunum Climate Equalization

• Recirculates air already inside the sauna
• Draws hot air from the ceiling level
• Draws cooler air from the lower cabin
• Blends the two air layers
• Returns mixed air beneath the bench
• Offers three fan speeds
• Supports more even temperature and steam distribution
• Can assist with drying after use

• Ceiling-mounted ventilation inlet included with the Leil cabin
• Designed for connection to the building’s ventilation system
• Supplies or exhausts fresh air according to the final mechanical design
• Saunum internal air circulation does not replace required fresh-air ventilation
• Fan, ductwork, external grilles, exhaust equipment, and HVAC labor are not part of the standard cabin
• Final intake and exhaust positions must be coordinated with the Saunum heater
• Ventilation must not interfere with the heater’s ceiling intake or lower air outlet
• Final ventilation design should be approved before assembly

• Indoor installation only
• Requires a stable, level, load-bearing finished floor
• Floor must support the cabin, heater, stones, occupants, and surrounding construction
• No finished floor pan or floor drain is identified as part of the cabin kit
• Site flooring should be heat resistant, moisture resistant, and cleanable
• Waterproofing, tile work, drainage, and floor transitions are site-preparation items
• Plumbing is not required for normal operation
• Water for the sauna stones is applied manually
• Any required drain must be planned according to local code and intended cleaning practices
