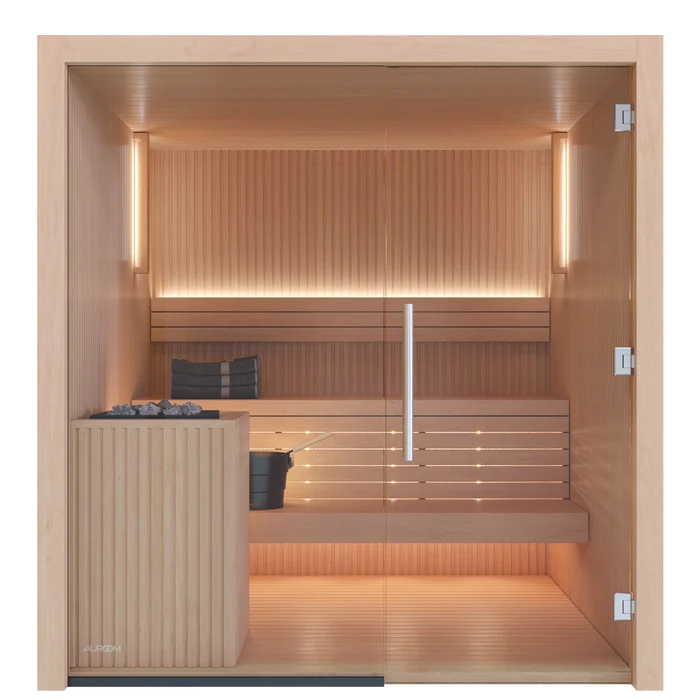

Auroom Libera Glass Traditional Indoor Sauna
Overview
- Product name: Auroom Libera Glass Six-Person Indoor Sauna
- Product type: Premium indoor traditional sauna cabin
- Model: LIBERA GLASS
- Standard MERIDIAN size: 79 in. deep × 99 in. wide
- Capacity: Up to 6 people
- Heating method: Traditional electric stone heating
- Available woods: Aspen, alder, or thermo-aspen
- Door configuration: Left- or right-hand
- Front wall: Full clear tempered-glass façade
- Door: Clear 8 mm tempered safety glass
- Interior layout: Upper and lower tiered benches
- Lighting: Integrated dimmable LED strip lighting
- Floor type: Removable wood floor grids / duckboard
- Installation format: Prefabricated indoor cabin kit
- Standard environment: Residential indoor installation
The standard MERIDIAN offering is the 79 × 99-inch Libera Glass cabin for up to six people.
The client may select:
- Aspen
- Alder
- Thermo-aspen
- Left-hand door configuration
- Right-hand door configuration
- Saunum AIR L 10 WiFi package in Nordic Black
- Saunum AIR L 10 WiFi package in stainless steel
- Harvia Virta 9 kW WiFi package with Xenio control
Only one heater package is supplied with each sauna. The selected heater, finish, controls, stones, and accessories will be identified on the client’s approved estimate and invoice.
Smaller Libera Glass cabin sizes may be offered upon request. Heater output and electrical requirements must be recalculated for the selected smaller cabin.
Sauna Cabin
Manufactured by Auroom OÜ
Estonia
Available Heating Manufacturers
- Saunum: Estonia
- Harvia: Finland
According to the Premium Saunas Libera Glass package, the cabin includes:
- One complete 79 × 99-inch Auroom Libera Glass cabin
- Selected aspen, alder, or thermo-aspen interior
- Upper bench grid
- Upper bench frame
- Bench assistance frames
- Lower bench grid
- Lower bench frame
- Lower bench supports
- Coordinated bench skirt
- Coordinated backrest
- Backrest supports
- Integrated LED backrest lighting
- Full clear tempered-glass front wall
- Clear tempered-glass entrance door
- Cladding for two exterior side walls
- Standard structural base frame
- Ceiling elements
- Removable wood floor grids
- Vertical finishing mouldings
- Horizontal finishing mouldings
- Fastening screws
- Moulding nails
- Required structural assembly components
- Installation instructions
- One client-selected heater package from the three approved options
Electrical installation, delivery beyond the contracted freight service, unloading, inside placement, site preparation, flooring, waterproofing, drainage, ventilation work, professional assembly, permits, and licensed trade services are separate unless specifically included on the client’s invoice.
The Premium Saunas Libera Glass listing currently identifies the following accessories as included:
- Sauna bucket
- Sauna ladle
- Thermometer
- Hygrometer
- Sand timer
- Aroma set
- Sauna hat
- Sauna pillow
Promotional inclusions can change. These accessories are included in the MERIDIAN offering only when confirmed on the vendor order and final client component schedule.
Exterior Dimensions
- Exterior Width: 99 inches / 2,500 mm
- Exterior Depth: 79 inches / 2,000 mm
- Exterior Height: 82.7 inches / 2,100 mm
- Approximate Footprint: 54.3 sq. ft.
Interior Dimensions
- Interior Width: 93 inches / 2,360 mm
- Interior Depth: 72 inches / 1,830 mm
- Interior Height: 80 inches / 2,030 mm
- Approximate Geometric Interior Volume: 310 cu. ft.
Weight & Capacity
- Recommended Capacity: Up to six people
- Approximate Assembled Cabin Weight: 1,434 lb. / 650 kg
- Published Shipping Weight: Approximately 1,544 lb. / 700 kg
- Installation Location: Floor-mounted
- Approximate Door Width: 24.2 inches / 615 mm
Product dimensions do not include required assembly space, heater clearances, electrical equipment, ventilation provisions, trim tolerances, or future service access.
Smaller Libera Glass configurations may be ordered when requested:
- 48 × 71 inches — up to two people
- 59 × 71 inches — up to three people
- 59 × 79 inches — up to four people
- 79 × 79 inches — up to five people
The heater packages specified for the standard six-person cabin must not automatically be carried over to a smaller configuration. MERIDIAN will confirm the appropriate heater and electrical requirements according to the selected size.
- Full-width clear glass façade
- Clear tempered-glass entrance door
- Two fully clad exterior side walls
- Selected aspen, alder, or thermo-aspen finish
- Clean architectural profile
- Coordinated finishing mouldings
- Premium natural-oak and metal door handle
- Stainless-steel self-closing hinges
- Left- or right-hand entrance configuration
- Designed for integration into a finished residential interior
Any wall not identified as fully clad may require placement against a finished wall or separately ordered exterior cladding.
Natural differences in wood grain, texture, figure, and color are expected.
- Designed for up to six occupants
- Upper and lower bench arrangement
- Elevated upper bench provides the warmer seating level
- Lower bench provides cooler seating and foot support
- Long bench profile supports seated group use
- Coordinated backrest
- Finished bench skirt
- Open access for routine cleaning
- Full glass frontage increases perceived interior space
- Bench placement coordinated with the selected heater
- Required heater clearances must remain unobstructed
Practical seating capacity varies according to occupant size, preferred spacing, heater placement, and required safety clearances.
- Choice of aspen, alder, or thermo-aspen
- Coordinated interior walls, benches, backrest, and trim
- Interior wall profile: STV Valeura
- Ceiling profile: STS4
- Full tempered-glass front wall
- Clear tempered-glass entrance door
- Glass thickness: 8 mm
- Standard structural base frame
- Removable wood floor grids
- Prefabricated modular construction
- Stainless-steel self-closing hinges
- Natural-oak and metal door handle
- Integrated LED strip lighting
- Factory-prepared structural components
- Coordinated finishing mouldings and fasteners
The linked Premium Saunas page publishes inconsistent dimensions for the STV Valeura wall profile. Final supplied profile dimensions are governed by the manufacturer drawings and packing documents.
Aspen
- Light natural tone
- Smooth, fine-grained surface
- Low resin content
- Comfortable for direct-contact seating
- Creates a bright interior appearance
Alder
- Warm reddish-brown tone
- Smooth grain
- Greater visual contrast
- Coordinated appearance across walls and benches
- Suitable for high-temperature sauna interiors
Thermo-Aspen
- Thermally modified using controlled heat and steam
- Deeper brown coloration
- Improved dimensional stability
- Reduced moisture absorption
- Suitable for repeated temperature and humidity changes
All wood requires appropriate cleaning, drying, and maintenance. No wood option is waterproof, stain-proof, scratch-proof, or maintenance-free.
- Full-width glass façade
- Clear tempered safety glass
- Door thickness: 8 mm
- Approximate door width: 24.2 inches / 615 mm
- Left- or right-hand configuration
- Stainless-steel self-closing hinges
- Premium natural-oak and metal handle
- Open interior sightlines
- Increased surrounding light
- Visually expands the cabin interior
- Requires careful multi-person handling
- Door alignment verified after leveling
Chipped, cracked, or damaged glass must not be installed. Glass must never rest directly on concrete, tile, stone, metal, or another hard surface.
- Full-length upper seating bench
- Lower seating bench
- Coordinated structural frames
- Lower bench supports
- Finished bench skirt
- Matching backrest
- Different perceived heat levels
- Flexible group seating
- Access for routine cleaning beneath and around the benches
- Duckboard-style wood floor grids
- Coordinated with the selected wood
- Removable for cleaning and drying
- Finished interior walking surface
- Separates feet from the structural floor
- Does not replace a load-bearing floor
- Does not provide waterproofing
- Does not provide drainage
The standard six-person Libera Glass is available with one of the following packages:
Option One
Saunum AIR L 10 WiFi Sauna Heater Package — Nordic Black
Option Two
Saunum AIR L 10 WiFi Sauna Heater Package — Stainless Steel
Option Three
Harvia Virta HL90E 9 kW WiFi Sauna Heater Package — Xenio CX45
The selected package determines:
- Heater appearance
- Heating output
- Stone capacity
- Air-equalizing capability
- Control platform
- Mobile application
- Circuit requirements
- Installation clearances
- Maintenance requirements
Package Includes
- Saunum AIR L 10 heater
- Solid-steel Nordic Black body
- Stainless-steel stone basket
- Integrated heat-equalizing module
- Telescopic hot-air intake
- Hot-air intake cap
- Adjustable cool-air intake valve
- Air-outlet grille
- Three heating-element air tunnels
- Stainless-steel protective grille
- Himalayan salt tray
- Seven Himalayan salt spheres
- Saunum AirIQ Wi-Fi control
- Digital soft-touch display
- Wall-mounting plate and fasteners
- Power unit
- Temperature sensor and cable
- Door sensor and cable
- Display-panel cable
- Heater electrical cable
- Heat-equalizer electrical cable
- Eight 33 lb. boxes of sauna stones
- Installation and operation manuals
- Applicable limited warranty
Heater Specifications
- Model: Saunum AIR 10 L
- Finish: Nordic Black
- Certification: UL listed
- Nominal Output: 9.8 kW / 9,800 watts
- Operating Voltage: 240 V AC
- Phase: Single phase
- Nominal Amperage: 41.66 A
- Recommended Room Volume: 247–459 cu. ft.
- Width: 19 inches / 483 mm
- Depth: 15 inches / 380 mm
- Adjustable Height: 72.25–95 inches / 1,850–2,400 mm
- Published Minimum Ceiling Height: Approximately 71 inches / 1,803 mm
- Heater Weight: Approximately 147 lb. / 67 kg
- Shipping Weight with Stones: Approximately 412 lb. / 187 kg
- Stone Capacity: Approximately 265 lb. / 120 kg
- Stone Size: Approximately 2–4 inches / 5–10 cm
- Heating Elements: Incoloy stainless steel
- Equalizer Speeds: Three
- Installation Type: Floor-standing
- Published Conductor Guidance: #6 with neutral and ground
Premium Saunas’ detailed specification table lists a 50 A breaker, while its electrical FAQ lists a 60 A double-pole breaker. The supplied heater nameplate, current Saunum manual, and local electrical code govern the final circuit.
Premium Saunas groups this stainless-steel selection under its AIR L 10 WiFi product listing. Its detailed specifications identify the heater itself as the AIR 10 stainless-steel model and publish different dimensions, output, weight, and stone capacity from the Nordic Black AIR 10 L.
The exact supplied model number must be confirmed before the client’s order is submitted.
Package Includes
- Saunum AIR 10 stainless-steel heater
- Stainless-steel stone basket
- Integrated heat-equalizing module
- Telescopic hot-air intake
- Hot-air intake cap
- Adjustable cool-air intake valve
- Air-outlet grille
- Three heating-element air tunnels
- Stainless-steel protective grille
- Himalayan salt tray
- Seven Himalayan salt spheres
- Saunum AirIQ Wi-Fi control
- Digital soft-touch display
- Wall-mounting plate and fasteners
- Power unit
- Temperature sensor and cable
- Door sensor and cable
- Display-panel cable
- Heater electrical cable
- Heat-equalizer electrical cable
- Approximately 132 lb. of sauna stones
- Quick-installation guide
- Installation and operation manuals
- Applicable limited warranty
Heater Specifications
- Published Model: Saunum AIR 10
- Premium Saunas Product Family: AIR L 10 WiFi
- Finish: Stainless steel
- Certification: UL listed
- Nominal Output: 9.6 kW / 9,600 watts
- Operating Voltage: 240 V AC
- Phase: Single phase
- Nominal Amperage: 40.83 A
- Recommended Room Volume: 282–424 cu. ft.
- Width: 18.31 inches / 465 mm
- Depth: 12.41 inches / 315 mm
- Adjustable Height: 80.54–94.49 inches / 2,046–2,400 mm
- Published Minimum Ceiling Height: 80.54 inches / 2,046 mm
- Heater Weight: Approximately 115 lb. / 52 kg
- Shipping Weight with Stones: Approximately 247 lb. / 112 kg
- Stone Capacity: Approximately 132 lb. / 60 kg
- Stone Size: Approximately 2–4 inches / 5–10 cm
- Heating Elements: Incoloy stainless steel
- Equalizer Speeds: Three
- Published Circuit Breaker: 50 A
- Published Conductor Guidance: Two #6 conductors plus neutral and ground
- Installation Type: Floor-standing
The cabin’s published interior height is approximately 80 inches, while Premium Saunas lists an approximately 80.54-inch minimum height for this stainless-steel heater. Compatibility and ceiling integration must therefore be confirmed through the final vendor and manufacturer drawings before ordering.
Saunum Air-Equalizing Technology
Both Saunum packages combine traditional electric stone heating with an integrated air-equalizing system.
- Draws hotter air from the upper cabin
- Draws cooler air from the lower cabin
- Blends upper and lower air
- Redistributes blended air into the sauna
- Reduces extreme vertical temperature differences
- Provides three adjustable fan speeds
- Supports more consistent head-to-toe comfort
- Helps circulate steam
- Supports post-use cabin drying
- Integrates Himalayan salt spheres into the airflow path
- Controlled through the AirIQ system
The Saunum equalizer circulates air within the cabin. It does not introduce fresh outdoor air and does not replace required sauna ventilation.
Saunum AirIQ Wi-Fi Control
Both Saunum packages include the AirIQ Wi-Fi control.
Features include:
- Digital soft-touch display
- Haptic feedback
- Wi-Fi connectivity
- Saunum mobile-app access
- App-based operation
- Temperature selection from approximately 104°F–194°F
- Session-time control
- Weekly scheduling
- Three programmable presets
- Three-speed equalizer adjustment
- Fahrenheit or Celsius display
- Sauna-ready notifications
- Heater-status notifications
- Open-door notifications
- Overheating notifications
- Door-sensor monitoring
- Screen lock
- Child-safety lock
- Overheat protection
- Multiple language options
- Modbus smart-home integration where supported
The control panel must be installed outside the sauna room. Remote operation requires the door sensor and all required safety equipment.
Saunum Stones & Salt Components
Nordic Black AIR 10 L
- Eight boxes of stones
- Approximately 33 lb. per box
- Approximately 264–265 lb. total
- Stone size: 2–4 inches
- Published as granite or olivine-diabase sauna stones
Stainless-Steel AIR 10
- Approximately 132 lb. of stones
- Stone size: 2–4 inches
- Rounded, prewashed stones identified in the package listing
Himalayan Salt Components
- Seven salt spheres
- Removable slotted salt tray
- Positioned within the circulated air path
- Replaceable when depleted or damaged
No medical or therapeutic outcome is guaranteed by the salt components.
Package Includes
- Harvia Virta HL90E electric sauna heater
- Stainless-steel heater body
- Stainless-steel heating elements
- Harvia Xenio CX45 control package
- Xenio Wi-Fi control panel
- Xenio power unit
- Temperature sensor
- Wi-Fi and MyHarvia connectivity
- Three boxes of Harvia AC3020 sauna stones
- Installation and operation manuals
- Applicable limited warranty
Any door sensor or additional remote-start safety equipment required by the final installation must be confirmed on the vendor order.
Heater Specifications
- Heater Model: Harvia Virta HL90E
- North American Package Model: HL9U1 PKG WIFI
- Finish: Stainless steel
- Nominal Output: 9.0 kW
- Operating Voltage: 240 V AC
- Phase: Single phase
- Nominal Amperage: 37.5 A
- Recommended Room Volume: 177–494 cu. ft.
- Width: Approximately 16 inches / 406 mm
- Depth: Approximately 13 inches / 330 mm
- Height: Approximately 33 inches / 838 mm
- Heater Weight: Approximately 50.7 lb.
- Published Shipping Weight with Stones: Approximately 182.7 lb.
- Required Stone Load: Approximately 100–110 lb.
- Supplied Stone Quantity: Three boxes; confirm final shipped weight
- Published Circuit Breaker: 50 A double-pole
- Published Conductor Size: #6 AWG copper
- Installation Type: Floor-standing
- Installation Position: Side-wall or corner placement
The Virta provides traditional radiant and convective heating but does not include Saunum’s active air-equalizing technology or Himalayan salt system.
Harvia Virta Heating Technology
- Traditional electric stone heating
- Separate stone compartment
- Stainless-steel heating elements
- High-capacity stone chamber
- Radiant and convective heat
- Water may be applied to the stones
- Direct stone-to-element contact
- Industrial-grade serviceable elements
- Floor-standing construction
- Side-wall or corner installation
- Designed and manufactured in Finland
- Controlled through the Xenio system
Harvia Xenio Wi-Fi Control
- Digital wall-mounted control panel
- Surface-mounted or recessed installation
- Heater on/off control
- Temperature adjustment
- Session-time control
- Timed starting
- Weekly scheduling
- Time-zone settings
- Daylight-saving settings
- Lighting control when connected
- Fan control when connected
- MyHarvia mobile-app access
- Remote sauna-status monitoring
- Software and control-panel updates
- Safety-device support
- Compatible with multiple connected mobile devices
Remote operation requires all prescribed safety equipment. The sauna must be inspected and clear before a remote or scheduled start.
Saunum Packages
- Control range: Approximately 104°F–194°F / 40°C–90°C
- Integrated air equalization
- Three airflow speeds
- Large stone capacity
- Adjustable steam production
- Reduced vertical temperature stratification
- Air circulation supports cabin drying
Harvia Package
- Traditional high-temperature sauna operation
- Stable heat from the stone mass
- Adjustable steam when water is applied
- Conventional natural heat stratification
- Upper and lower benches provide different perceived temperatures
- No integrated active air-equalizing fan
For every package, heat-up time depends on ambient temperature, glass area, ventilation, stone loading, electrical supply, door use, and starting conditions.
Saunum AIR 10 L — Nordic Black
- 240 V AC
- Single phase
- 41.66 A nominal load
- Dedicated hardwired circuit
- Premium Saunas publishes 50–60 A breaker guidance
- #6 conductors with neutral and ground
- Separate connections for heater and equalizer components
- AirIQ power-unit connection
- Door- and temperature-sensor wiring
Saunum AIR 10 — Stainless Steel
- 240 V AC
- Single phase
- 40.83 A nominal load
- Dedicated hardwired circuit
- 50 A published breaker
- Two #6 conductors plus neutral and ground
- Separate heater and equalizer connections
- AirIQ power-unit connection
- Door- and temperature-sensor wiring
Harvia Virta 9 kW
- 240 V AC
- Single phase
- 37.5 A nominal load
- Dedicated hardwired circuit
- 50 A double-pole breaker
- #6 AWG copper conductors
- Xenio power-unit connection
- Temperature-sensor wiring
- Additional remote-start safety wiring where required
Separate or coordinated electrical provisions are required for:
- Integrated LED lighting
- Lighting transformer or power supply
- Mechanical ventilation, if installed
- Additional approved accessories
All electrical work must be performed by a licensed electrician. Final requirements are governed by the selected heater’s nameplate, current installation manual, approved drawings, and local code.
- Integrated LED strip behind the backrest
- Soft indirect illumination
- Dimmable operation
- Coordinated with the bench system
- Dedicated transformer or power supply
- Separate or coordinated electrical connection
- Installed in approved heat-compatible locations
The Premium Saunas Libera listing does not identify RGB or chromotherapy lighting as standard equipment.
- Dedicated sauna ventilation required
- Fresh-air intake supports heater performance
- Exhaust pathway supports air exchange
- Ventilation assists with post-use drying
- Intake and exhaust locations coordinated with the selected heater
- Sensor placement coordinated with airflow
- Ventilation openings must remain unobstructed
- Airflow should not create a direct bench-level draft
- Mechanical fans, ductwork, grilles, and HVAC labor are separate unless listed on the invoice
Saunum air equalization does not replace fresh-air intake or exhaust ventilation.
- Indoor installation only
- Stable, level, waterproof, and load-bearing floor required
- Floor must support the cabin, heater, stones, occupants, and accessories
- Cabin weight: Approximately 1,434 lb.
- Additional selected heater and stone weight must be included in structural calculations
- Structural review may be required for framed or elevated floors
- Heat- and moisture-resistant finished flooring required
- Carpet is not suitable beneath the cabin
- Waterproofing, drainage, and floor transitions are site-preparation items
- Plumbing is not required for normal operation
- Any floor drain must comply with local code
- Adequate ceiling and assembly clearance required
- Future access to the heater and control power unit must remain available
- Delivered as a prefabricated cabin kit
- Published cabin shipping weight: Approximately 1,544 lb.
- Components may arrive in multiple packages
- Heater equipment may ship separately
- LTL freight delivery requires an appointment
- Standard freight does not automatically include inside placement
- Unloading requirements must be confirmed
- Delivery route must accommodate oversized and heavy components
- Doorways, hallways, stairs, elevators, gates, and turns must be measured
- Floor and elevator weight limits must be verified
- Dry protected storage may be required
- Glass and finished wood must remain protected
- Shipment must be inspected for visible damage at delivery
- Damage must be photographed and recorded on the delivery receipt
- Delivered as a prefabricated modular cabin
- Structural base leveled before wall installation
- Wall elements assembled in the prescribed sequence
- Ceiling elements installed after wall alignment
- Glass façade and door installed with supplied hardware
- Upper and lower bench assemblies installed according to the drawings
- Backrest and LED lighting installed after structural alignment
- Heater location and clearances established before installation
- Electrical, sensor, lighting, and ventilation routes planned before closure
- Saunum upper-air intake coordinated with the cabin ceiling
- Door alignment verified after leveling
- Professional assembly strongly recommended
- Multiple installers required for structural and glass components
- Licensed electrician required
- Qualified ventilation trade required where applicable
- Final operational and safety testing required before use
- Auroom cabin covered by its applicable limited warranty
- Saunum packages identified by Premium Saunas as UL certified
- Saunum currently publishes a two-year limited residential warranty
- Saunum commercial warranty is generally one year
- Harvia package carries its applicable written heater and control warranties
- Premium Saunas currently states a two-year residential and one-year commercial Harvia warranty
- Some product-page sections separately identify one-year component coverage
- Heating elements may be excluded from Harvia warranty coverage
- Final written warranty supplied with each component governs
- Proof of purchase and serial numbers must be retained
- Correct assembly, electrical installation, operation, and maintenance are required
- Improper installation or unauthorized modification may affect coverage
- Final certifications must be verified against the exact supplied model numbers
- Electrical approval must comply with local requirements
- Use clean towels to protect bench surfaces
- Remove visible moisture after use
- Leave the door open or partially open while drying
- Maintain adequate room ventilation
- Lift and clean beneath removable floor grids
- Clean wood with a mild sauna-approved cleaner
- Clean in the direction of the grain
- Avoid soaking the wood
- Avoid chlorine, bleach, pressure washing, abrasives, and harsh chemicals
- Clean glass with a non-abrasive glass-safe product
- Inspect hinges, handles, glass fittings, and door alignment
- Inspect benches, supports, backrest, and structural connections
- Keep ventilation openings clear
- Inspect LED lighting and its power supply
- Inspect and rearrange sauna stones regularly
- Replace cracked or deteriorated stones
- Maintain open airflow through the stone basket
- Keep heater service areas accessible
- Inspect temperature and door sensors
- Follow the selected heater manufacturer’s maintenance instructions
- Arrange qualified electrical and safety inspections when required
- Keep upper and lower air-intake paths unobstructed
- Inspect the equalizer fan and air channels
- Clean the salt tray as directed
- Replace damaged or depleted salt spheres
- Use the drying function according to Saunum instructions
- Keep the Virta service hatch accessible
- Inspect the separate stone compartment
- Maintain airflow around the heating elements
- Follow Harvia’s stone-loading instructions
- Inspect Xenio control and sensor connections
