Sauna Type
Traditional Outdoor Sauna
Available Configurations
Terra S + Terra M
Terra S
Dedicated Sauna Room
Terra M
Sauna Room + Separate Changing & Relaxation Area
Recommended Capacity — Terra S
2–3 People
Recommended Capacity — Terra M
3–4 People
Construction
Prefabricated / Ready-to-Use Module
Country of Manufacture
Estonia
Terra S
101.6" W × 87.4" D × 98.4" H

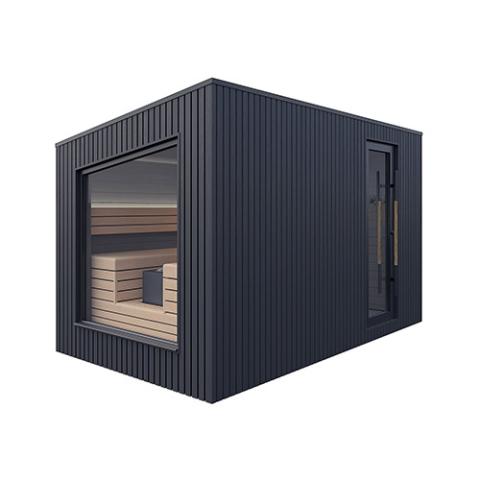

Terra M
150.8" W × 87.4" D × 98.4" H
Exterior Cladding
Thermo-Pine
Exterior Finish Options
Natural Oiled Thermo-Pine or Translucent Black
Base Frame
Black-Painted Impregnated Wooden Beams
Approximate Weight — Terra S
4,409 lbs. / 2,000 kg Excluding Heater
Approximate Weight — Terra M
8,598 lbs. / 3,900 kg Excluding Heater
Terra S Layout
Dedicated Sauna Environment
Terra M Layout
Sauna + Spacious Changing & Relaxation Area
Seating
Multi-Level Sauna Benches
Bench Material Options
Natural Alder, Natural Aspen or Thermo-Aspen
Interior Wall & Ceiling Finish
Waxed Dark-Gray Wood Panels
Floor Grids
Wood Construction
Floor Covering
Waterproof PVC
Door Orientation
Left- or Right-Hand Opening Available
Structural Construction
Cross-Laminated Timber (CLT)
Exterior Material
Thermo-Pine
Interior Wall Material
Waxed Thermally Modified Wood
Bench Materials
Alder, Aspen or Thermo-Aspen
Base Structure
Impregnated Wooden Beams
Floor Protection
Waterproof PVC Floor Covering
Construction Format
Factory-Prefabricated Module
Sauna Door
Double-Glazed Tempered Glass
Windows
Triple-Glazed Tempered Glass
UV Protection
Integrated
Window Frames
Pine
Glass Finish
Clear
Heater
Saunum Air Perfect 7
Heating Type
Traditional Electric Sauna Heater with Integrated Air-Climate System
Heating Power
6.9 kW
Maximum Temperature
194°F
Stone Capacity
Approximately 121 lbs.
Heat Distribution
Saunum Air-Blending Climate System
Steam / Löyly
Water May Be Applied to Sauna Stones for Traditional Steam
Control System
Saunum AirIQ Wi-Fi
Control Interface
Digital Touch Control
Wi-Fi Connectivity
Included
Remote Operation
Saunum Mobile App
Temperature Range
104–194°F
Climate Control
Three-Speed Air-Circulation Control
Scheduling
Remote Scheduling Available
Safety Features
Door Sensor & Overheat Protection
Voltage
240V
Phase
Single Phase
Heater Power
6.9 kW
Amperage
28.75A
Electrical Service
Dedicated Circuit Required
Connection
Hardwired
Installation
Licensed Electrician Required
Circuit Protection
Sized According to Saunum Requirements & Applicable Electrical Code
GFCI
Heater Circuit Must Follow Saunum's Installation Requirements
Sauna Ventilation
Integrated Ventilation
Air Exchange
Fresh-Air Intake & Exhaust
Post-Session Ventilation
Supports Moisture Removal & Interior Drying
Internal Air Management
Supplemented by the Saunum Air Perfect 7 Active Air-Climate System
Interior Lighting
Integrated LED Lighting
Bench Lighting
LED Lighting Beneath Benches
Lighting Design
Concealed Architectural Illumination
Optional Audio
Integrated Speaker System
Audio Connectivity
Bluetooth Player Available
Smart Sauna Control
Saunum AirIQ Wi-Fi + Mobile App
System
Saunum Integrated Air-Climate System
Air Circulation
Active Fan-Assisted Air Blending
Fan Control
Three-Speed
Upper Air Intake
Draws Hotter Air from the Upper Sauna
Lower Air Intake
Draws Cooler Air from the Lower Sauna
Air Distribution
Blended Air Redistributed Throughout the Sauna
Climate Function
Designed to Reduce Temperature Stratification & Create More Even Heat Distribution
Delivery Configuration
Prefabricated / Ready-to-Use Module
On-Site Structural Assembly
Minimal Compared with Traditional Kit Saunas
Foundation
Stable, Level Structural Base Required
Placement
Heavy-Lifting Equipment May Be Required
Electrical Preparation
Required
Heater Installation
Professional Installation Required
Electrical Connection
Licensed Electrician Required
Site Preparation
Determined by Installation Location & Local Requirements
MERIDIAN Coordination
Site preparation, delivery, placement, electrical preparation, heater installation and final project coordination available through The MERIDIAN Experience.
Manufacturer Warranty
2-Year Limited Warranty
Coverage
Manufacturing & Material Defects
Warranty Period
2 Years from Delivery to the Original Consumer
Maximum Warranty Period
No More Than 3 Years from Date of Manufacture
Warranty Claims
Defects Must Be Reported Within 2 Months of Discovery
Installed Equipment
Covered Separately by the Applicable Equipment Manufacturer's Warranty
Exclusions
Normal Wear, Natural Wood Characteristics, Improper Installation, Improper Maintenance, Misuse, Installation Damage & Extraordinary Weather Conditions
Sauna Manufacturer
Auroom OÜ
Country of Manufacture
Estonia
Sauna Structure Certification
No Independent UL, ETL or CSA Certification Published for the Terra Structure
Heating Equipment
Saunum Air Perfect 7 — North American Configuration
Control System
Saunum AirIQ Wi-Fi — North American Configuration
Electrical Installation
Must Comply with Manufacturer Requirements & Applicable Electrical Codes
Final Compliance
Subject to Installation Jurisdiction & Final Equipment Configuration
